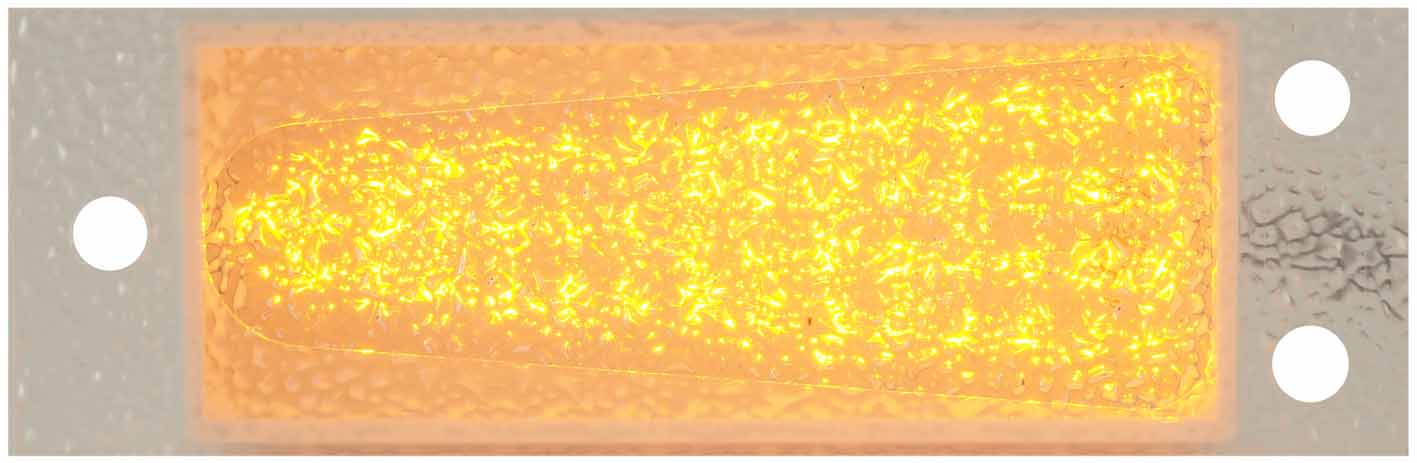

Comb lighting KL51-Y (F-comb)
Reagent for Comb lighting KL51-Y (F-comb):
The KL51-Y comb lighting (F comb) is equipped with super-bright, high-quality and particularly long-lasting LEDs. Mechanical adaptation to your on-site conditions is possible at any time.
Special features are:
- Extremely robust electrical design
- No damage to the LEDs due to electrical fluctuations
- Insensitive to soiling
- Waterproof up to IP 67
The KL51-Y comb lighting (F-comb) is used in the comb area of escalators.
| Parameter | Value |
| Operating voltage | 11 … 26 V AC/DC |
| Power consumption | 4 VA |
| Ambient temperature | -20°C to 60 °C |
| Protection class | waterproof up to IP 67 |
| Dimensions | 210 x 68 mm |
| Installation depth | 40 mm |
| Weight | 400 g |
| Parameter | Value |
| LED color | yellow |
| Luminosity | 90 lx (1 m distance) |
| Windshield | PMMA Plexiglas ice crystal |
| Dimension front screen | 150 x 52.6 mm (tapered) |
| Height of the contour | 3 mm |
| Supply cable | 4 x 0.5 mm², length 50 cm, Ölflex, wire end ferrules |
| Wire | Assignment |
| Wire 1 | Vcc |
| Wire 2 | Vcc |
| Wire 3 | Input FÜ (collector) |
| Wire 4 | Output FÜ (emitter) |
